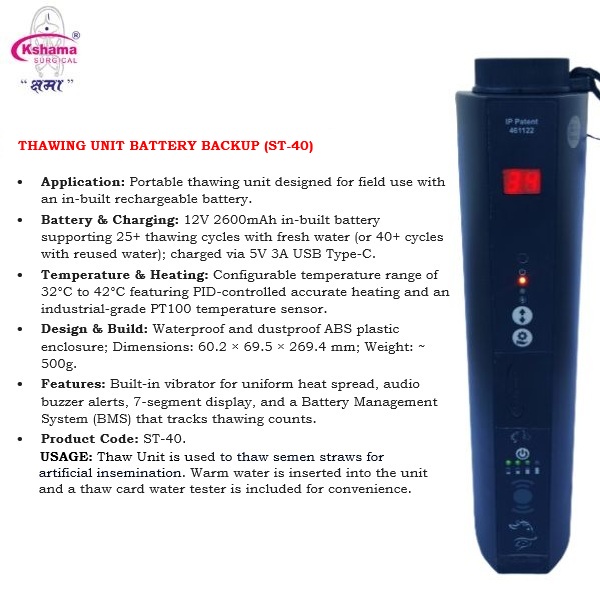

USAGE:
Thaw Unit is used to thaw semen straws for artificial insemination. Warm water is inserted into the unit and a thaw card water tester is included for convenience.
USAGE FOR THAWING UNIT
Original price was: ₹25,000.00.₹22,000.00Current price is: ₹22,000.00.
-12%Adapter | No separate Adapter, In-built battery |
Battery | 12V 2600mAh |
Battery Life | 25+ Thawing Cycle with Fresh Water at 26 C, 40+ Thawing Cycle with reusing of Water at 30+ C |
Charger | 5V 3A USB Type C |
BMS | Yes, provides thawing counts |
Weight | ~500g |
Height | 60.2×69.5×269.4 in mm |
Width | 60.2×69.5×269.4 in mm |
Flask Dia | ID 22mm, OD 24.5mm |
Flask Height | 140mm minimum |
Plastic | ABS, Waterproof/ Dustproof, IP64 |
Operating Temperature | 0-70 C |
Bike Battery Cable | Not needed |
Temperature Sensor | PT100 or Equivalent 0.1 to 0.5 C |
Temperature Range | 32-42 C – Configurable |
Audio | Buzzer |
Display | 7Segment |
Cow/Buffalo Operations | Yes |
Heating Cycle | 4-5 min |
Thawing | Vertical, Water based |
PID Control | PID based very accurate heating control, Patented Process |
Thawing Medium | ~50ml |
Thawing Cycle | Configurable from 5 Sec to 120 Sec |
Vibrator | Yes |
Test Certification | Yes, plus additional drop test, IP rating, Radio Certifications |
Softcover | Not available as product is water and dust proof |
USAGE:
Thaw Unit is used to thaw semen straws for artificial insemination. Warm water is inserted into the unit and a thaw card water tester is included for convenience.
USAGE FOR THAWING UNIT
Weight | 0.800 kg |
---|---|
Dimensions | 32 × 15 × 7 cm |
