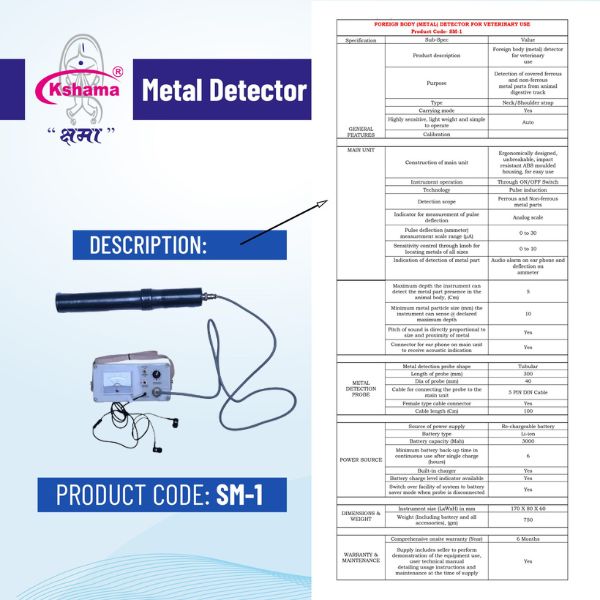

Metal Detector

GENERAL​FEATURES:

Product description – Foreign body (metal) detector for veterinary​ use
Purpose – Detection of covered ferrous and non-ferrous​ metal parts from
Type – Neck/Shoulder strap
Carrying mode – Yes
Highly sensitive, light weight and simple to operate – Auto
Calibration

MAIN UNIT:

Construction of main unit – Ergonomically designed, unbreakable, impact​ resistant ABS moulded housing, for easy use
Instrument operation – Through ON/OFF Switch
Technology – Pulse induction
Detection scope – Ferrous and Non-ferrous metal parts
Indicator for measurement of pulse deflection – Analog scale
Pulse deflection (ammeter) measurement scale range (μA) – 0 to 30
Sensitivity control through knob for locating metals of all sizes – 0 to 10
Indication of detection of metal part – Audio alarm on ear phone and deflection on​ ammeter
Maximum depth the instrument can detect the metal part presence in the animal body, (Cm) – 5
Minimum metal particle size (mm) the instrument can sense @ declared maximum depth – 10
Pitch of sound is directly proportional to size and proximity of metal – Yes
Connector for ear phone on main unit to receive acoustic indication – Yes

METAL​ DETECTION​ PROBE:

Metal detection probe shape – Tubular
Length of probe (mm) – 300
Dia of probe (mm) – 40
Cable for connecting the probe to the main unit – 5 PIN DIN Cable
Female type cable connector – Yes
Cable length (Cm) – 100

POWER SOURCE :

Source of power supply – Re-chargeable battery
Battery type – Li-ion
Battery capacity (Mah) – 3000
Minimum battery back-up time in continuous use after single charge (hours) – 6
Built-in charger – Yes
Battery charge level indicator available – Yes
Switch over facility of system to battery saver mode when probe is disconnected – Yes

DIMENSIONS &​ WEIGHT:

Instrument size (LxWxH) in mm – 170 X 80 X 60
Weight (Including battery and all accessories), (gm) – 750

WARRANTY &​ MAINTENANCE:

Comprehensive onsite warranty (Year) – 6 Months
Supply includes seller to perform demonstration of the equipment use, user technical manual​ detailing usage instructions and maintenance at the time of supply – Yes
